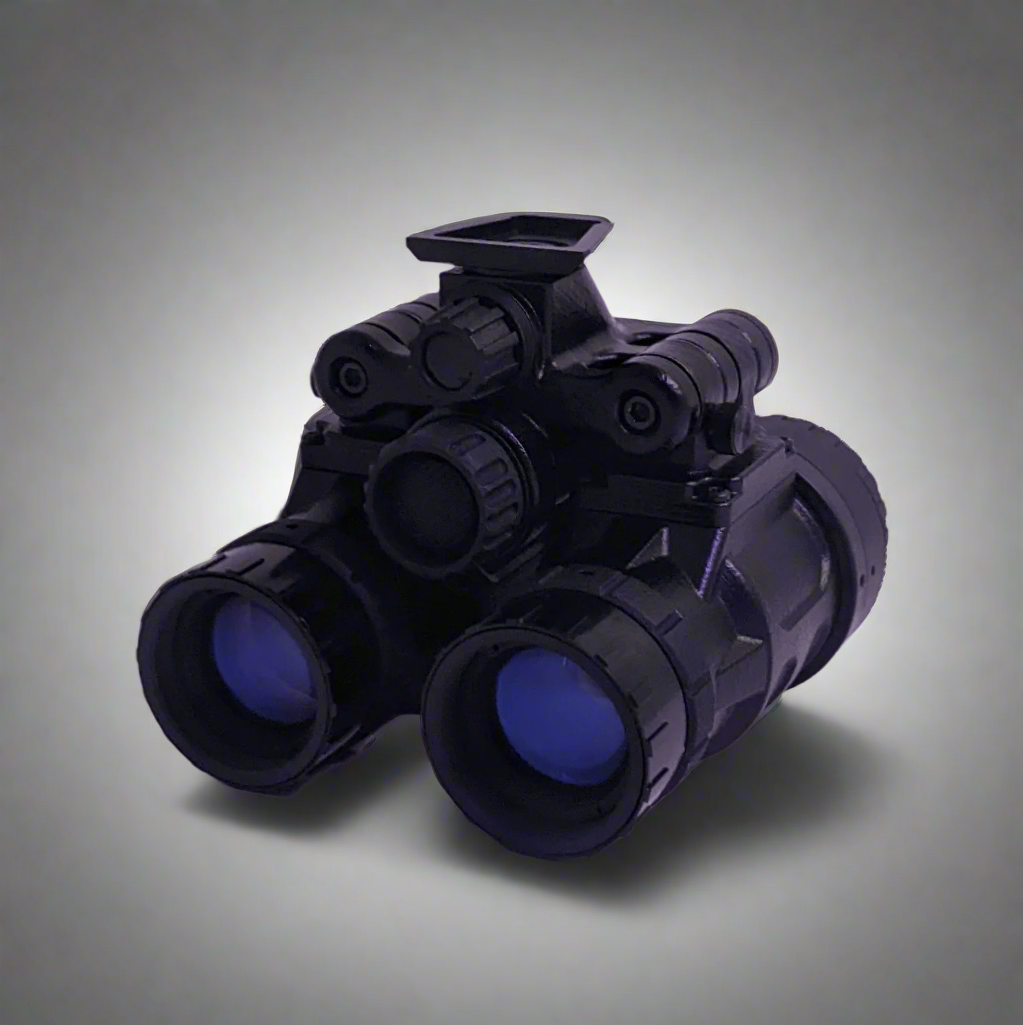

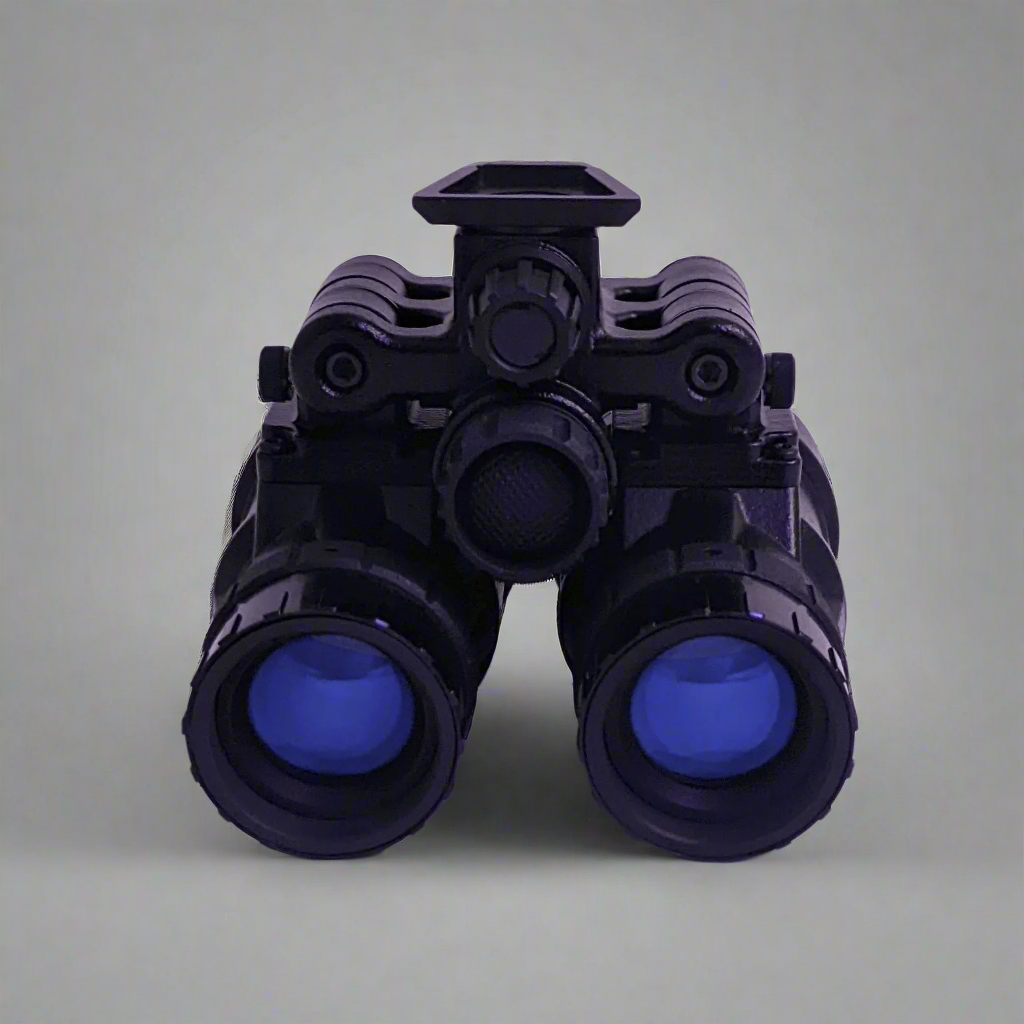

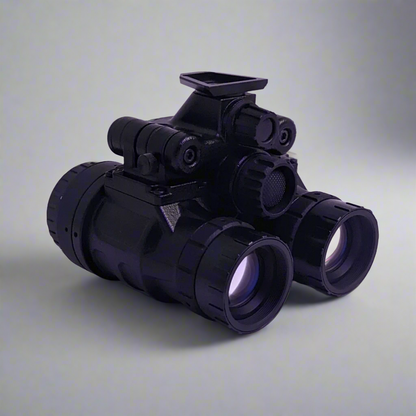

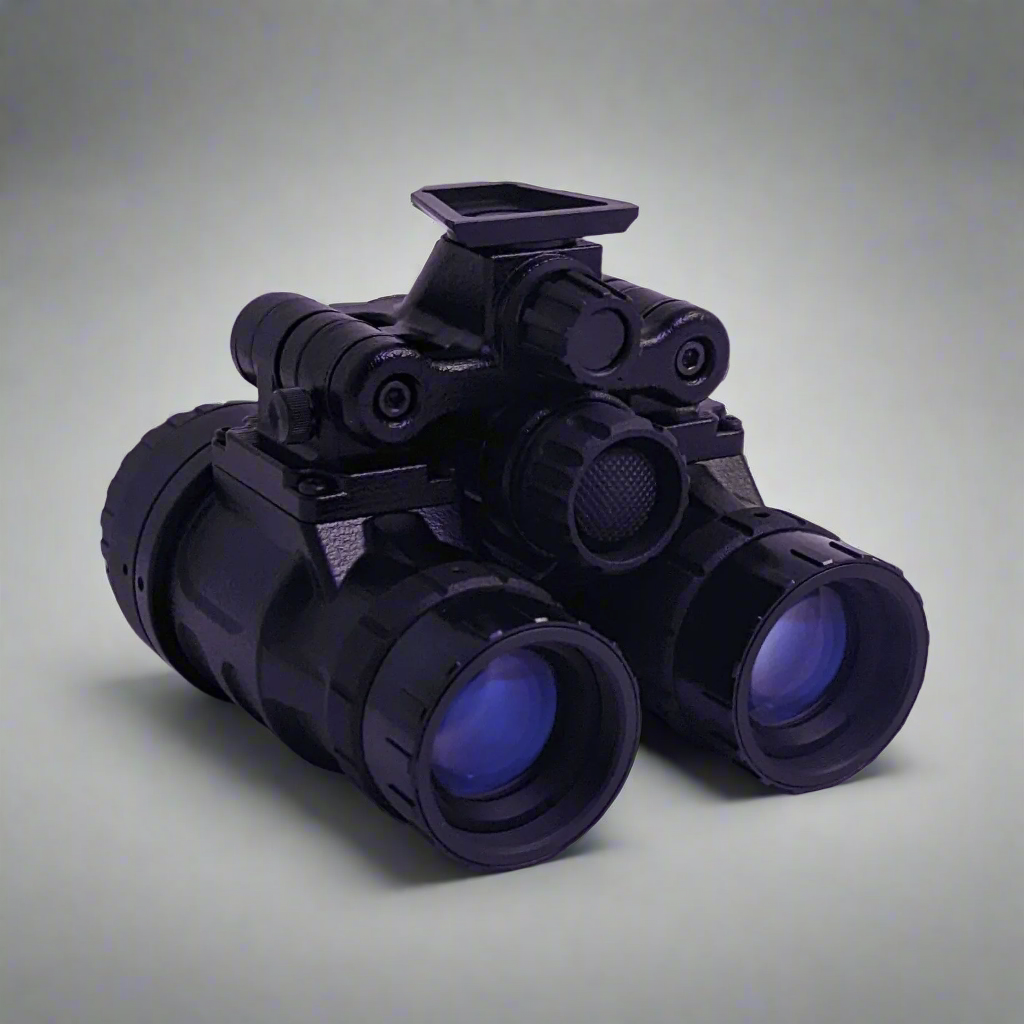

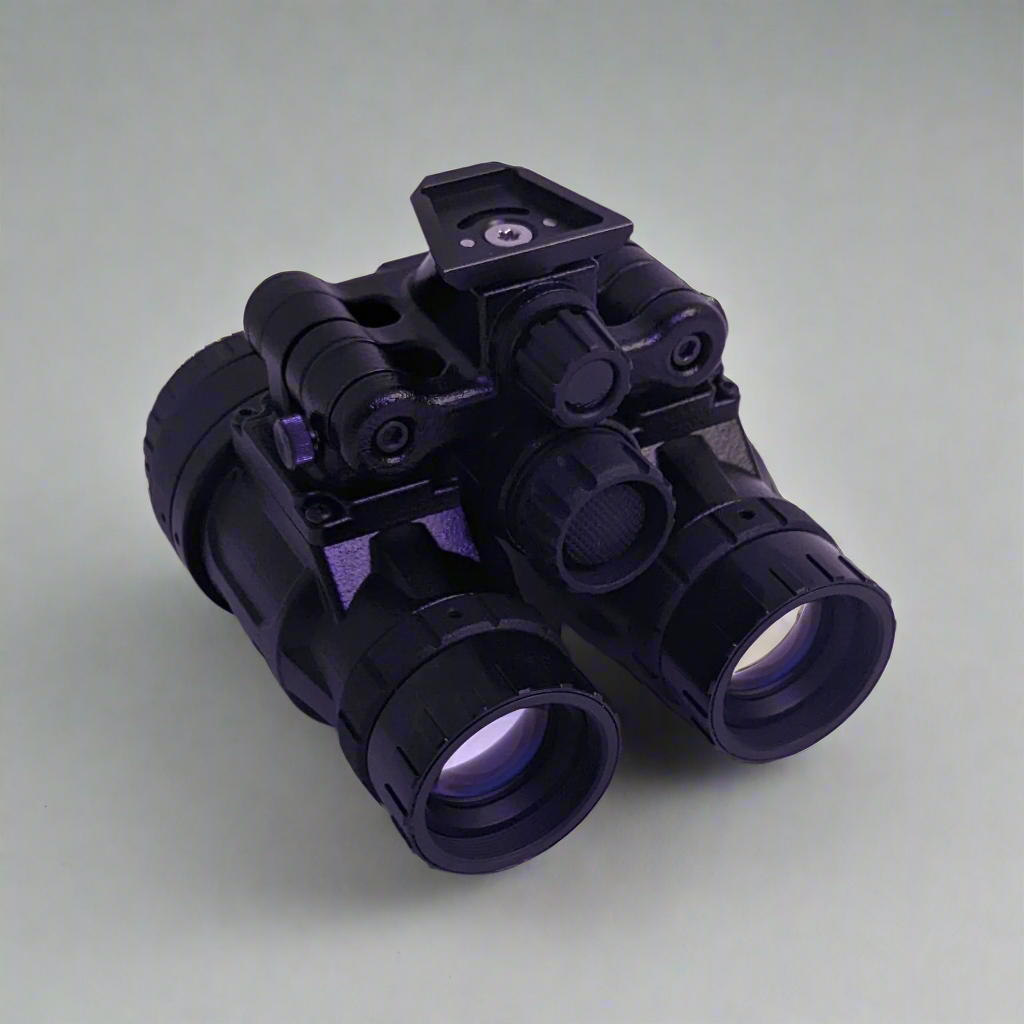

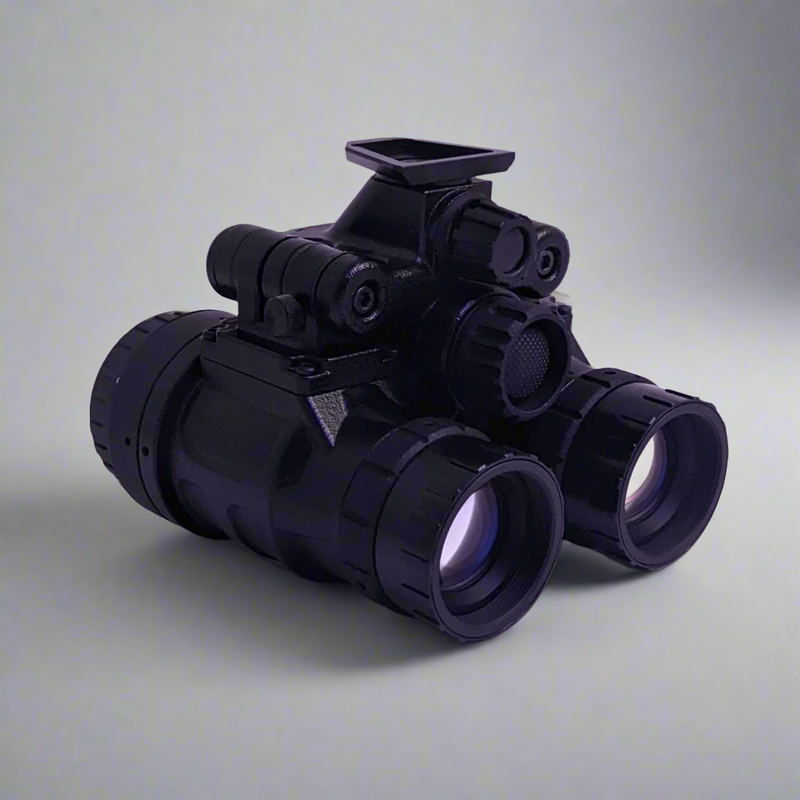

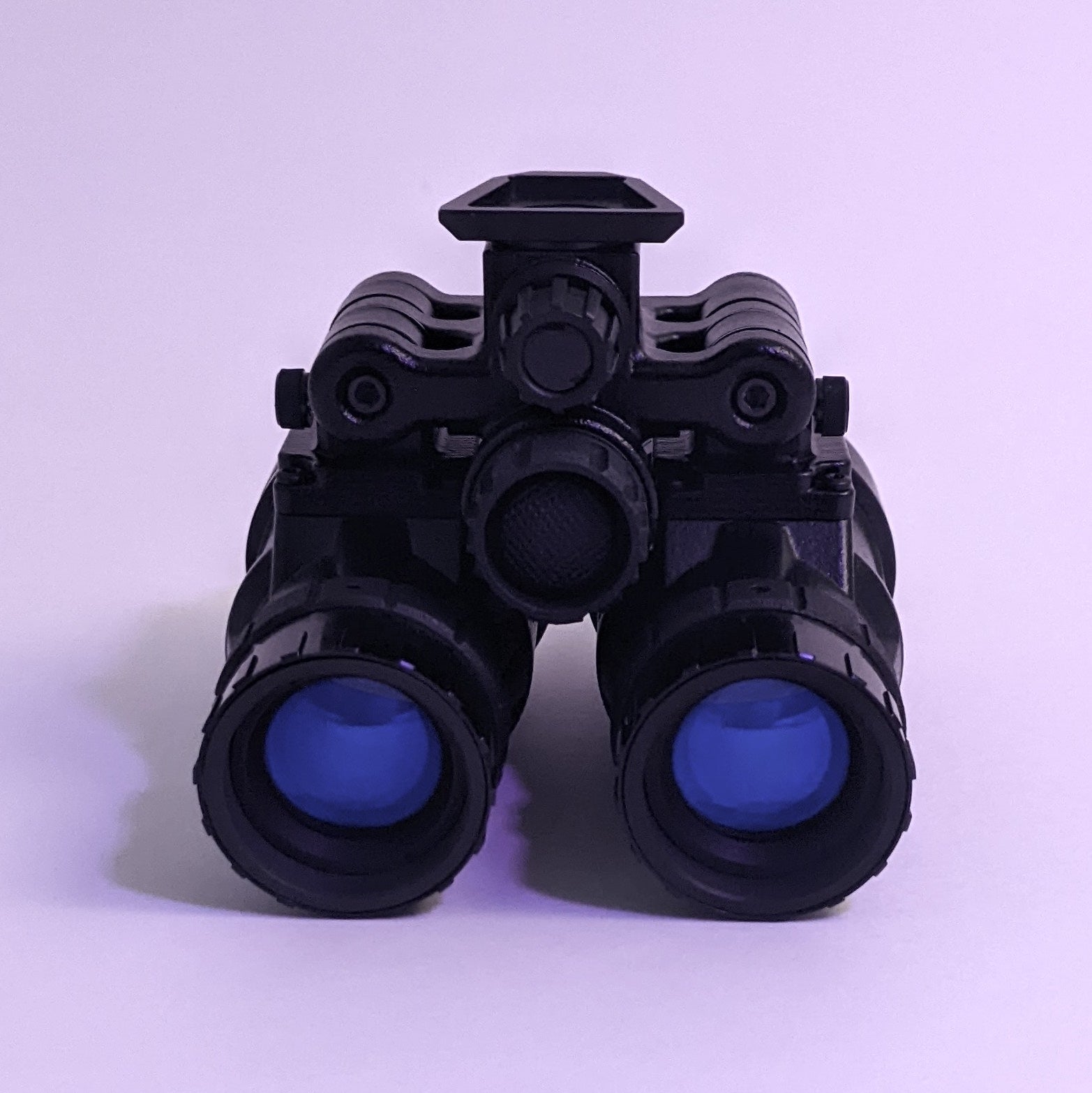

MOD-31 Nightfighter-MG | Modular Dedicated Binocular Housing

ALL CURRENT ORDERS WILL INCLUDE ONE FREE MINI RAIL THERMAL ARM (Compatible with Flir Breach, Armasight Sidekick, etc.)

Lead Time: 8-12 weeks from order date (contact us with any questions)

Experience the Pinnacle of Modular Night Vision Technology

Introducing the MOD-31 Nightfighter-MG, the lightest binocular housing on the market with manual gain control, meticulously engineered for maximum weight savings and exceptional modularity.

As a part of the MOD NODS ecosystem, the MOD-31 Nightfighter provides unparalleled flexibility, allowing users to seamlessly transition between monocular, binocular, and hybrid thermal configurations.

The Nightfighter can be configured with standard 40° arms, 55° wide field-of-view (FOV) fixed pan arms, or with the quick panning swivel arms (40° - 60° FOV).

The Nightfighter is the first and only dedicated binocular housing to ever offer panning and articulation.

Whether you’re an operator seeking a mission-specific setup or a night vision enthusiast demanding the latest innovations, the Nightfighter-MG is engineered to meet and exceed your needs.

Key Features

The MOD-31 Nightfighter-MG sets a new benchmark as the lightest binocular housing with manual gain control ever released, featuring auto shut off, IPD stops, and modularity that allows you to swap between analog night vision and thermal without any tools.

Configurable with standard 40° arms, 55° fixed pan arms, or quick panning swivel arms (40° - 60° FOV).

Ultra-Lightweight Design

This is the most lightweight binocular night vision housing with manual gain control available on the market. When paired with standard lenses and the included lightweight diopters, you have a system that is comparable in weight to the PVS-31, but with toolless modular functionality.

When paired with lightweight lenses you can create the most lightweight binocular night vision system with manual gain control in existence.

Advanced Field of View (FOV) Options

Compatible with 40° standard FOV or 55° wide-angle FOV configurations via modular pod toppers or adjustable panning arms (40° - 60° FOV).

Swiveling panning arms allow dynamic adjustments to field of view, providing the flexibility to adapt your system to the mission.

Unmatched Lightweight Performance

At just 3.9 oz, the Nightfighter-MG housing is lighter than any other manual gain binocular housing available.

Achieve a complete system weight comparable to the PVS-31A, with the added benefit of modular functionality, using standard lenses (and included diopters). Or using lightweight lenses, you get a system with an unparalleled light weight.

Complete System Weight:

Standard Lenses	16.5 oz (PVS-31 weight)
RPO 3.0 Lenses	13.9 oz

Advanced Modular Ecosystem

Designed for maximum adaptability, the MOD-31 Nightfighter-MG is at the core of a modular system that allows users to effortlessly transform their setup:

Monocular to Binocular Configurations: Attach or detach pods using tool-free thumb screws.

Hybrid Thermal Capabilities: Swap out one pod for a thermal attachment arm or other future accessories (e.g., mini rail thermal arms).

Field of View (FOV) Options

Customize your field of view based on mission requirements:

40° Standard FOV: Traditional alignment for precise observation.

55° Wide FOV: Increase situational awareness with a fixed pan view.

40° - 60° FOV Panning Swivel Arms: Dynamically adjust the field of view for on-the-fly adaptability.

Manual Gain Control

Plug-and-Play Compatibility: Works seamlessly with standard MX-11769 image intensifier tubes—no special adapters needed.

Fully Analog rotary gain knob, instead of push buttons.

Use the centralized manual gain control knob for precise user adjustment of manual gain.

Modular Ecosystem

Designed from the ground up to be a part of a modular ecosystem, the MOD-31 Nightfighter enables the user to quickly transform their device from a monocular, to binocular, or bridged analog and thermal system-- all without the use of any tools.

Tool-Free Modularity
Attach or detach the pods from the Nightfighter bridge using the thumb screw hinge bolts—no tools required. Quickly swap between the analog night vision pods, mini rail thermal arm, or MOD-14 arms.

Auto Shutoff

The bridge supports auto shutoff on articulation, helping streamline power management.

IPD Stops
The Nightfighter bridge includes IPD (Interpupillary Distance) stops that can be fine-tuned for a comfortable viewing experience. Once set, your chosen IPD remains consistent.

Flexible Field of View Options:
Compatible with both standard 40° and 55° wide field-of-view (FOV) configurations, or our swivel panning arms (40° - 60° FOV). Choose whichever option you prefer when ordering the housing.

Specifications

Weight (Housing Only): 3.9 oz

Materials: High-strength polymer, anodized aluminum, stainless steel hardware

Lenses: Compatible with PVS-14 or ANVIS (select when ordering)

Image Intensifier Tubes: MX-11769 and MX-10160 compatible

Power Source: Single CR123A battery

Battery Life: ~20+ hours with efficient power management

Kit Includes

Nightfighter-MG Binocular Housing

Your choice of MOD-31 Arms: Standard 40° FOV, 55° Wide FOV, or Panning Swivel Arms (40° - 60° FOV)

Thumb Screw Hinge Bolts

Low Profile Hinge Bolts

Tube Retainer Rings

Close-to-Infinity Focus Stop Rings (D-Rings)

Hard Case

Note: Image intensifier tubes, lenses, and other accessories are not included and must be purchased separately.

Why Choose the MOD-31 Nightfighter-MG?

The MOD-31 Nightfighter offers a truly next-generation lightweight solution, designed from scratch for maximum modularity. With its unmatched low weight, manual gain control, flexible field of view options, and modularity, the Nightfighter empowers you to build the night vision system that perfectly matches your evolving requirements.

A Truly Modular System

Revolutionize your night vision experience with modularity that allows:

Seamless transformation between monocular, binocular, and hybrid configurations.

Quick swaps between analog night vision and thermal capabilities—all without tools.

Many users desire a modular binocular system where they can easily configure their device in the field from a fully analog binocular night vision system, to a hybrid analog night vision and thermal system, without using any tools. With the MOD-31 Nightfighter system, it's now truly possible.

Unmatched Lightweight Performance

Reduce fatigue during extended operations with the lightest binocular housing available. Ideal for users prioritizing comfort and efficiency in the field.

Future-Proof Investment

The Nightfighter-MG is part of an ecosystem that ensures your system stays relevant with advancing technology. Upgrade to new accessories or configurations as they become available.

Part of the MOD NODS ecosystem, the Nightfighter-MG evolves with your needs. Add new accessories or upgrade to advanced configurations without replacing your system.

Transferable Lifetime Warranty

We stand behind the quality and durability of our products. The MOD-31 Nightfighter comes with a Transferable Lifetime Warranty, ensuring peace of mind with your purchase.

Made in the USA

Proudly designed, manufactured, and assembled in the United States.

Currently Restricted to U.S. Sales Only

Due to export regulations, we can only fulfill orders within the United States at this time.

Additional Information

Lead Times: Please allow ~8-12 weeks for order processing and fulfillment. Contact us with any questions regarding lead times.

Shipping:

Domestic Shipping: Free shipping within the United States.

International Shipping: Not available due to export restrictions.

Stay Connected

Stay updated with the latest news, product announcements, photos, and videos by following us on Instagram at @nightvision.plus

Customer Support

If you have any questions or need assistance, please reach out via our contact page or send us a direct message on Instagram.

Frequently Asked Questions

Q: Can I upgrade my Nightfighter-MG to support thermal capabilities?

A: Yes, the modular design allows for the user to quickly swap out either of the pods for a thermal attachment arm, such as our mini rail thermal arm (sold separately).

Q: What’s the difference between the Nightfighter-MG and the Nightfighter-AG?

A: The Nightfighter-MG features a centralized manual gain control knob for precise user adjustment, and the Nightfighter-AG features automatic brightness control. Both housings are compatible with MX-11769 and MX-10160 tubes.

Q: Does the Nightfighter-MG support tool-free configuration?
A: Yes! Attach or detach pods, arms, or accessories without tools using the included hinge thumb screws. Alternatively, you can use the low profile hinge bolts.

Q: What lenses are compatible with the Nightfighter-MG?
A: The Nightfighter-MG is compatible with either PVS-14 or ANVIS lenses. Please select your preferred configuration when placing your order.

Q: Does the MOD-31 Nightfighter come with image intensifier tubes and lenses?
A: No, image intensifier tubes, lenses, and other accessories are not included and must be purchased separately.

Patent Pending
